Product Details
Features of Genset Powered by Perkins:
- International Warranty Service
- EU emission standard
- With ISO9001& CE certification
- Spare parts are easy to get from worldwide market with more competitive price
- Coupled with E&G, Stamford, Meccalte, Leroysomer alternator.
- Perfect after-service network Power range from 9kva to 2250kva
- Rigorous test including 50% load, 75% load, 100% load and 110% load
- Warranty: One year or 1500 Working Hours from the shipment date, whichever comes first.

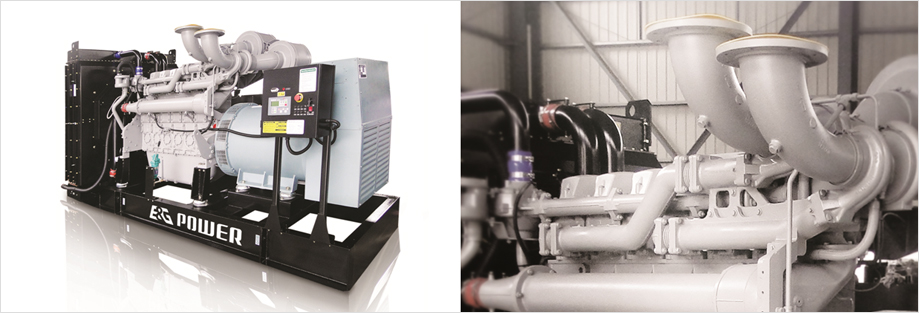

Standard Configuration of Perkins open type
- Perkins engine
- E&G alternator (Stamford, Leroysomer, Meccalte brand for option)
- Deepsea DSE3110 control panel as standard, AMF Control Panel Deepsea DSE7320 & Smartgen HGM6120 for Option, ATS for Option
- LS breaker as standard, ABB, Schneider, Chint Breaker for Option
- 8 Working Hours Base Fuel Tank （for the genset ≤ 650kVA prime, only Base Frame for other models)
- Anti-Vibration Mounted System
- Battery and battery switch
- Industrial silencer and flexible exhaust hose for open type, the genset will be much easier to maintain and repair with more durable performance and longer service life, so the cost performance is higher.
| Genset Model | Genset Standby Power | Genset Prime Power | Amps | Brand New Perkins Engine | |||
|---|---|---|---|---|---|---|---|
| kVA | kWe | kVA | kWe | ESP@380V | Engine Model | Place of Origin | |
| EG-PS 9F | 10 | 8 | 9 | 7.2 | 15 | 403A-11G1 | CHINA |
| EG-PS 9F-1 | 10 | 8 | 9 | 7.2 | 15 | 403D-11G | CHINA |
| EG-PS 13F | 14 | 11 | 13 | 10.4 | 22 | 403A-15G1 | CHINA |
| EG-PS 13F-1 | 14 | 11 | 13 | 10.4 | 22 | 403D-15G | CHINA |
| EG-PS 15F | 17 | 13 | 15 | 12 | 25 | 403A-15G2 | CHINA |
| EG-PS 20F | 22 | 18 | 20 | 16 | 33 | 404A-22G1 | CHINA |
| EG-PS 20F-1 | 22 | 18 | 20 | 16 | 33 | 404D-22G | CHINA |
| EG-PS 30F | 33 | 26 | 30 | 24 | 50 | 1103A-33G | INDIA |
| EG-PS 45F | 50 | 40 | 45 | 36 | 75 | 1103A-33TG1 | INDIA |
| EG-PS 60F | 66 | 53 | 60 | 48 | 100 | 1103A-33TG2 | INDIA |
| EG-PS U30F | 33 | 26 | 30 | 24 | 50 | 1103A-33G | UK |
| EG-PS U45F | 50 | 40 | 45 | 36 | 75 | 1103A-33TG1 | UK |
| EG-PS U60F | 66 | 53 | 60 | 48 | 100 | 1103A-33TG2 | UK |
| EG-PS 65F | 72 | 57 | 65 | 52 | 109 | 1104A-44TG1 | CHINA |
| EG-PS 80F | 88 | 70 | 80 | 64 | 134 | 1104A-44TG2 | CHINA |
| EG-PS 80F-1 | 88 | 70 | 80 | 64 | 134 | 1104C-44TAG1 | CHINA |
| EG-PS 100F | 110 | 88 | 100 | 80 | 167 | 1104C-44TAG2 | CHINA |
| EG-PS 80F-2 | 88 | 70 | 80 | 64 | 134 | 1104D-E44TAG1 | CHINA |
| EG-PS 100F-1 | 110 | 88 | 100 | 80 | 167 | 1104D-E44TAG2 | CHINA |
| EG-PS 135F | 149 | 119 | 135 | 108 | 226 | 1106A-70TG1 | CHINA |
| EG-PS 150F | 165 | 132 | 150 | 120 | 251 | 1106A-70TAG2 | CHINA |
| EG-PS 180F | 198 | 158 | 180 | 144 | 301 | 1106A-70TAG3 | CHINA |
| EG-PS 200F | 220 | 176 | 200 | 160 | 334 | 1106A-70TAG4 | CHINA |
| EG-PS 142F | 157 | 125 | 142 | 114 | 238 | 1106D-E70TAG2 | CHINA |
| EG-PS 150F-1 | 165 | 132 | 150 | 120 | 251 | 1106D-E70TAG3 | CHINA |
| EG-PS 180F-1 | 198 | 158 | 180 | 144 | 301 | 1106D-E70TAG4 | CHINA |
| EG-PS A200F | 220 | 176 | 200 | 160 | 334 | 1506A-E88TAG1 | USA |
| EG-PS A225F | 248 | 198 | 225 | 180 | 376 | 1506A-E88TAG2 | USA |
| EG-PS A250F | 275 | 220 | 250 | 200 | 418 | 1506A-E88TAG3 | USA |
| EG-PS A275F | 303 | 242 | 275 | 220 | 460 | 1506A-E88TAG4 | USA |
| EG-PS A300F | 330 | 264 | 300 | 240 | 501 | 1506A-E88TAG5 | USA |
| EG-PS A350F | 385 | 308 | 350 | 280 | 585 | 2206C-E13TAG2 | USA |
| EG-PS A400F | 440 | 352 | 400 | 320 | 669 | 2206C-E13TAG3 | USA |
| EG-PS A450F | 495 | 396 | 450 | 360 | 752 | 2506C-E15TAG1 | USA |
| EG-PS A500F | 550 | 440 | 500 | 400 | 836 | 2506C-E15TAG2 | USA |
| EG-PS A600F | 660 | 528 | 600 | 480 | 1003 | 2806C-E18TAG1A | USA |
| EG-PS A650F | 715 | 572 | 650 | 520 | 1086 | 2806A-E18TAG2 | USA |
| EG-PS U750F | 825 | 660 | 750 | 600 | 1253 | 4006-23TAG2A | UK |
| EG-PS U800F | 880 | 704 | 800 | 640 | 1337 | 4006-23TAG3A | UK |
| EG-PS U900F | 990 | 792 | 900 | 720 | 1504 | 4008TAG1A | UK |
| EG-PS U1000F | 1100 | 880 | 1000 | 800 | 1671 | 4008TAG2A | UK |
| EG-PS U1125F | 1238 | 990 | 1125 | 900 | 1880 | 4008-30TAG3 | UK |
| EG-PS U1250F | 1375 | 1100 | 1250 | 1000 | 2089 | 4012-46TWG2A | UK |
| EG-PS U1350F | 1485 | 1188 | 1350 | 1080 | 2256 | 4012-46TWG3A | UK |
| EG-PS U1500F | 1650 | 1320 | 1500 | 1200 | 2507 | 4012-46TAG2A | UK |
| EG-PS U1650F | 1815 | 1452 | 1650 | 1320 | 2758 | 4012-46TAG3A | UK |
| EG-PS U1850F | 2035 | 1628 | 1850 | 1480 | 3092 | 4016TAG1A | UK |
| EG-PS U2000F | 2200 | 1760 | 2000 | 1600 | 3343 | 4016TAG2A | UK |
| EG-PS U2000F-1 | 2200 | 1760 | 2000 | 1600 | 3343 | 4016-61TRG2 | UK |
| EG-PS U2250F | 2475 | 1980 | 2250 | 1800 | 3760 | 4016-61TRG3 | UK |
| EG-PS I750F | 825 | 660 | 750 | 600 | 1253 | 4006-23TAG2A | INDIA |
| EG-PS I800F | 880 | 704 | 800 | 640 | 1337 | 4006-23TAG3A | INDIA |
| EG-PS I900F | 990 | 792 | 900 | 720 | 1504 | 4008TAG1A | INDIA |
| EG-PS I1000F | 1100 | 880 | 1000 | 800 | 1671 | 4008TAG2A | INDIA |
| EG-PS I1125F | 1238 | 990 | 1125 | 900 | 1880 | 4008-30TAG3 | INDIA |
| EG-PS I1250F | 1375 | 1100 | 1250 | 1000 | 2089 | 4012-46TWG2A | INDIA |
| EG-PS I1350F | 1485 | 1188 | 1350 | 1080 | 2256 | 4012-46TWG3A | INDIA |
| EG-PS I1500F | 1650 | 1320 | 1500 | 1200 | 2507 | 4012-46TAG2A | INDIA |
| EG-PS I1650F | 1815 | 1452 | 1650 | 1320 | 2758 | 4012-46TAG3A | INDIA |
| EG-PS I2000F | 2200 | 1760 | 2000 | 1600 | 3343 | 4016-61TRG2 | INDIA |
| EG-PS I2250F | 2475 | 1980 | 2250 | 1800 | 3760 | 4016-61TRG3 | INDIA |
| Genset Model | Genset Standby Power | Genset Prime Power | Amps | Brand New Perkins Engine | |||
|---|---|---|---|---|---|---|---|
| kVA | kWe | kVA | kWe | ESP@416V | Engine Model | Place of Origin | |
| EG-PS 10S | 13 | 10 | 11 | 9 | 17 | 403D-11G | CHINA |
| EG-PS 13S | 16 | 13 | 15 | 12 | 23 | 403D-15G | CHINA |
| EG-PS 15S | 19 | 15 | 17 | 13.6 | 26 | 403A-15G2 | CHINA |
| EG-PS 21S | 26 | 21 | 24 | 19 | 36 | 404D-22G | CHINA |
| EG-PS 28S | 35 | 28 | 31 | 25 | 49 | 404D-22TG | CHINA |
| EG-PS U30S | 38 | 30 | 34 | 27 | 52 | 404D-22TAG | UK |
| EG-PS I30S | 38 | 30 | 34 | 27 | 52 | 1103A-33G | INDIA |
| EG-PS I47S | 59 | 47 | 54 | 43 | 82 | 1103A-33TG1 | INDIA |
| EG-PS I55S | 69 | 55 | 63 | 50 | 95 | 1103A-33TG2 | INDIA |
| EG-PS U30S-1 | 38 | 30 | 34 | 27 | 52 | 1103A-33G | UK |
| EG-PS U47S | 59 | 47 | 54 | 43 | 82 | 1103A-33TG1 | UK |
| EG-PS U55S | 69 | 55 | 63 | 50 | 95 | 1103A-33TG2 | UK |
| EG-PS 55S | 69 | 55 | 63 | 50 | 95 | 1104D-44TG1 | CHINA |
| EG-PS 65S | 81 | 65 | 74 | 59 | 113 | 1104A-44TG1 | CHINA |
| EG-PS 65S-1 | 81 | 65 | 74 | 59 | 113 | 1104D-E44TG1 | CHINA |
| EG-PS 80S | 100 | 80 | 91 | 73 | 139 | 1104A-44TG2 | CHINA |
| EG-PS 80S-1 | 100 | 80 | 91 | 73 | 139 | 1104D-E44TAG1 | CHINA |
| EG-PS 100S | 125 | 100 | 114 | 91 | 173 | 1104C-44TAG2 | CHINA |
| EG-PS 100S-1 | 125 | 100 | 114 | 91 | 173 | 1104D-E44TAG2 | CHINA |
| EG-PS 135S | 169 | 135 | 152 | 121.5 | 234 | 1106A-70TG1 | CHINA |
| EG-PS 143S | 179 | 143 | 169 | 135 | 248 | 1106D-E70TAG2 | CHINA |
| EG-PS 150S | 188 | 150 | 169 | 135 | 260 | 1106A-70TAG2 | CHINA |
| EG-PS 175S | 219 | 175 | 200 | 160 | 304 | 1106A-70TAG3 | CHINA |
| EG-PS 175S-1 | 219 | 175 | 200 | 160 | 304 | 1106D-E70TAG4 | CHINA |
| EG-PS 200S | 250 | 200 | NA | NA | 347 | 1106D-E70TAG5 | CHINA |
| EG-PS A215S | 269 | 215 | 245 | 196 | 373 | 1506A-E88TAG1 | USA |
| EG-PS A215S-1 | 269 | 215 | 245 | 196 | 373 | 1506A-E88TAG2 | USA |
| EG-PS A250S | 313 | 250 | 281 | 225 | 434 | 1506A-E88TAG3 | USA |
| EG-PS A275S | 344 | 275 | 313 | 250 | 477 | 1506A-E88TAG4 | USA |
| EG-PS A300S | 375 | 300 | 338 | 270 | 520 | 1506A-E88TAG5 | USA |
| EG-PS A350S | 438 | 350 | 400 | 320 | 607 | 2206C-E13TAG2 | USA |
| EG-PS A350S-1 | 438 | 350 | 400 | 320 | 607 | 2206D-E13TAG2 | USA |
| EG-PS A350S-2 | 438 | 350 | 400 | 320 | 608 | 2206A-E13TAG5 | USA |
| EG-PS A400S | 500 | 400 | 438 | 350 | 694 | 2206A-E13TAG6 | USA |
| EG-PS A400S-1 | 500 | 400 | 438 | 350 | 694 | 2206D-E13TAG3 | USA |
| EG-PS A450S | 563 | 450 | 500 | 400 | 781 | 2506C-E15TAG1 | USA |
| EG-PS A450S-1 | 563 | 450 | 500 | 400 | 781 | 2506D-E15TAG1 | USA |
| EG-PS A500S | 625 | 500 | 569 | 455 | 867 | 2506C-E15TAG3 | USA |
| EG-PS A550S | 688 | 550 | NA | NA | 954 | 2506C-E15TAG4 | USA |
| EG-PS A550S-1 | 688 | 550 | 625 | 500 | 954 | 2806C-E18TAG1A | USA |
| EG-PS A600S | 750 | 600 | 681 | 545 | 1041 | 2806C-E18TAG3 | USA |
| EG-PS U660S | 825 | 660 | 750 | 600 | 1145 | 4006-23TAG2A | UK |
| EG-PS U740S | 925 | 740 | 841 | 673 | 1284 | 4006-23TAG3A | UK |
| EG-PS U880S | 1100 | 880 | 1000 | 800 | 1527 | 4008TAG2 | UK |
| EG-PS U1100S | 1375 | 1100 | 1250 | 1000 | 1908 | 4012-46TWG2A | UK |
| EG-PS U1200S | 1500 | 1200 | 1364 | 1091 | 2082 | 4012-46TWG3A | UK |
| EG-PS U1325S | 1656 | 1325 | 1506 | 1205 | 2299 | 4012-46TAG2A | UK |
| EG-PS U1500S | 1875 | 1500 | 1705 | 1364 | 2602 | 4012-46TAG3A | UK |
| EG-PS I660S | 825 | 660 | 750 | 600 | 1145 | 4006-23TAG2A | INDIA |
| EG-PS I740S | 925 | 740 | 841 | 673 | 1284 | 4006-23TAG3A | INDIA |
| EG-PS I880S | 1100 | 880 | 1000 | 800 | 1527 | 4008TAG2 | INDIA |
| EG-PS I1100S | 1375 | 1100 | 1250 | 1000 | 1908 | 4012-46TWG2A | INDIA |
| EG-PS I1200S | 1500 | 1200 | 1364 | 1091 | 2082 | 4012-46TWG3A | INDIA |
| EG-PS I1325S | 1656 | 1325 | 1506 | 1205 | 2299 | 4012-46TAG2A | INDIA |
| EG-PS I1500S | 1875 | 1500 | 1705 | 1364 | 2602 | 4012-46TAG3A | INDIA |
