Product Details

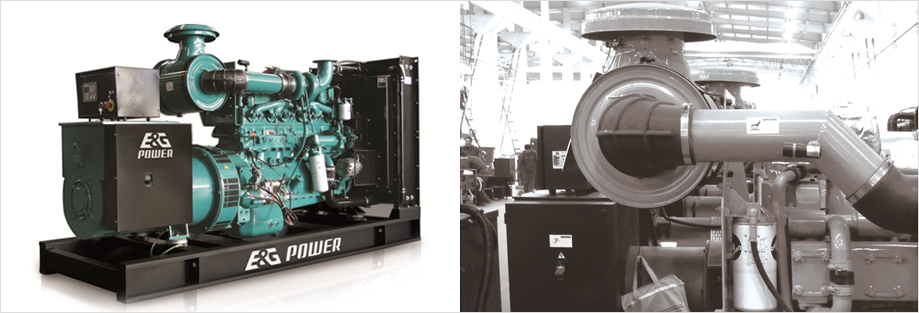

Features of genset powered by Cummins:
- International Warranty Service
- Short delivery time, as we always have Cummins engine in stock
- With ISO9001&CE certification
- Spare parts are easy to get from worldwide market with more competitive price
- Coupled with E&G, Stamford, Meccalte, Leroysomer alternator.
- Perfect after-service network
- Both 50Hz and 60Hz
- Rigorous test including 50% load, 75% load, 100% load and 110% load
Standard configuration of Cummins open type:
- Cummins engine
- E&G alternator (Stamford, Mecc alte, Leroysomer brand for option)
- Deepsea DSE3110 control panel as standard, AMF Control Panel Deepsea DSE7320 & Smartgen HGM6120 for Option, ATS for Option
- LS breaker as standard, ABB, Schneider,Chint Breaker for Option
- 8 Working Hours Base Fuel Tank （for the genset ≤ 650kVA prime, only Base Frame for other models)
- Anti-Vibration Mounted System
- Battery and battery switch
- Industrial silencer and flexible exhaust hose
- Cummins tools(CCEC and DCEC Only)
| Genset Model | Genset Standby Power | Genset Prime Power | Amps | Brand New Cummins Engine | ||
|---|---|---|---|---|---|---|
| kVA | kWe | kVA | kWe | ESP@380V | Engine Model | |
| EG-CS 20F | 22 | 18 | 20 | 16 | 33 | 4B3.9-G1 |
| EG-CS 20F-1 | 22 | 18 | 20 | 16 | 33 | 4B3.9-G2 |
| EG-CS 25F | 28 | 22 | 25 | 20 | 42 | 4B3.9-G1 |
| EG-CS 25F-1 | 28 | 22 | 25 | 20 | 42 | 4B3.9-G2 |
| EG-CS 30F | 33 | 26 | 30 | 24 | 50 | 4BT3.9-G1 |
| EG-CS 30F-1 | 33 | 26 | 30 | 24 | 50 | 4BT3.9-G2 |
| EG-CS 40F | 44 | 35 | 40 | 32 | 67 | 4BT3.9-G1 |
| EG-CS 40F-1 | 44 | 35 | 40 | 32 | 67 | 4BT3.9-G2 |
| EG-CS 55F | 61 | 48 | 55 | 44 | 92 | 4BTA3.9-G2 |
| EG-CS 75F | 83 | 66 | 75 | 60 | 125 | 4BTA3.9-G11 |
| EG-CS 100F | 110 | 88 | 100 | 80 | 167 | 6BT5.9-G1 |
| EG-CS 100F-1 | 110 | 88 | 100 | 80 | 167 | 6BT5.9-G2 |
| EG-CS 120F | 132 | 106 | 120 | 96 | 201 | 6BTA5.9-G2 |
| EG-CS 135F | 149 | 119 | 135 | 108 | 226 | 6BTAA5.9-G2 |
| EG-CS 150F | 165 | 132 | 150 | 120 | 251 | 6BTAA5.9-G12 |
| EG-CS 180F | 198 | 158 | 180 | 144 | 301 | 6CTA8.3-G1 |
| EG-CS 180F-1 | 198 | 158 | 180 | 144 | 301 | 6CTA8.3-G2 |
| EG-CS 200F | 220 | 176 | 200 | 160 | 334 | 6CTAA8.3-G2 |
| EG-CS 250F | 275 | 220 | 250 | 200 | 418 | 6LTAA8.9-G2 |
| EG-CS 250F-1 | 275 | 220 | 250 | 200 | 418 | 6LTAA8.9-G3 |
| EG-CS 315F | 347 | 277 | 315 | 252 | 526 | QSM11-G2 |
| EG-CS 390F | 429 | 343 | 390 | 312 | 652 | 6ZTAA13-G3 |
| EG-CS 440F | 484 | 387 | 440 | 352 | 735 | 6ZTAA13-G2 |
| EG-CS 450F | 495 | 396 | 450 | 360 | 752 | QSZ13-G2 |
| EG-CS 500F | 550 | 440 | 500 | 400 | 836 | QSZ13-G3 |
| EG-CS 360F | 396 | 317 | 360 | 288 | 602 | QSZ13-G6 |
| EG-CS 400F | 440 | 352 | 400 | 320 | 669 | QSZ13-G7 |
| EG-CS 450F-1 | 495 | 396 | 450 | 360 | 752 | QSZ13-G5 |
| EG-CCS 250F | 275 | 220 | 250 | 200 | 418 | MTA11-G2 |
| EG-CCS 250F-1 | 275 | 220 | 250 | 200 | 418 | NT855-GA |
| EG-CCS 275F | 313 | 250 | 275 | 220 | 475 | NTA855-G1A |
| EG-CCS 315F | 350 | 280 | 315 | 250 | 532 | MTAA11-G3 |
| EG-CCS 315F-1 | 350 | 280 | 315 | 250 | 532 | NTA855-G1B |
| EG-CCS 345F | 375 | 300 | 345 | 275 | 570 | NTA855-G2A |
| EG-CCS 350F | 388 | 310 | 350 | 280 | 589 | NTA855-G4 |
| EG-CCS 375F | 413 | 330 | 375 | 300 | 627 | NTAA855-G7 |
| EG-CCS 375F-1 | 413 | 330 | 375 | 300 | 627 | KTA19-G2 |
| EG-CCS S450F | 450 | 360 | NA | NA | 684 | NTAA855-G7A Standby |
| EG-CCS 450F | 500 | 400 | 450 | 360 | 760 | KTA19-G3 |
| EG-CCS 500F | 563 | 450 | 500 | 400 | 855 | KTA19-G3A |
| EG-CCS 500F-1 | 563 | 450 | 500 | 400 | 855 | KTA19-G4 |
| EG-CCS 525F | 631 | 505 | 525 | 420 | 959 | KTAA19-G5 |
| EG-CCS 575F | 650 | 520 | 575 | 460 | 988 | KTAA19-G6 |
| EG-CCS S650F | 650 | 520 | NA | NA | 988 | KTA19-G8 Standby |
| EG-CCS S688F | 688 | 550 | NA | NA | 1045 | KTAA19-G6A standby |
| EG-CCS 650F | 710 | 570 | 650 | 520 | 1079 | QSK19-G4 |
| EG-CCS 750F | 825 | 660 | 750 | 600 | 1253 | KTA38-G2 |
| EG-CCS 800F | 888 | 710 | 800 | 640 | 1348 | KTA38-G2B |
| EG-CCS 910F | 1000 | 800 | 910 | 728 | 1519 | KTA38-G2A |
| EG-CCS 1000F | 1100 | 880 | 1000 | 800 | 1671 | KTA38-G5 |
| EG-CCS S1250F | 1250 | 1000 | NA | NA | 1899 | KTA38-G9 Standby |
| EG-CCS 1250F | 1375 | 1100 | 1250 | 1000 | 2089 | QSKTA38-G5 |
| EG-CCS 1250F | 1375 | 1100 | 1250 | 1000 | 2089 | KTA50-G3 |
| EG-CCS 1375F | 1650 | 1320 | 1375 | 1100 | 2507 | KTA50-G8 |
| EG-CCS 1475F | 1650 | 1320 | 1475 | 1180 | 2507 | KTA50-GS8 |
| Genset Model | Genset Standby Power | Genset Prime Power | Amps | Brand New Cummins Engine | ||
|---|---|---|---|---|---|---|
| kVA | kWe | kVA | kWe | ESP@416V | Engine Model | |
| EG-CS 20S | 25 | 20 | 23 | 18 | 35 | 4B3.9-G2 |
| EG-CS 25S | 31 | 25 | 28 | 23 | 43 | 4B3.9-G2 |
| EG-CS 30S | 38 | 30 | 34 | 27 | 52 | 4BT3.9-G2 |
| EG-CS 38S | 48 | 38 | 43 | 35 | 66 | 4BT3.9-G2 |
| EG-CS 60S | 75 | 60 | 68 | 55 | 104 | 4BTA3.9-G2 |
| EG-CS 75S | 94 | 75 | 85 | 68 | 130 | 4BTA3.9-G11 |
| EG-CS 100S | 125 | 100 | 114 | 91 | 173 | 6BT5.9-G2 |
| EG-CS 120S | 150 | 120 | 136 | 109 | 208 | 6BTA5.9-G2 |
| EG-CS 125S | 156 | 125 | 142 | 114 | 217 | 6BTAA5.9-G2 |
| EG-CS 150S | 188 | 150 | 170 | 136 | 260 | 6BTAA5.9-G12 |
| EG-CS 175S | 219 | 175 | 199 | 159 | 304 | 6CTA8.3-G2 |
| EG-CS 190S | 238 | 190 | 216 | 173 | 330 | 6CTAA8.3-G2 |
| EG-CS 228S | 286 | 228 | 260 | 208 | 396 | 6LTAA8.9-G2 |
| EG-CS 250S | 313 | 250 | 284 | 227 | 434 | 6LTAA8.9-G3 |
| EG-CS 310S | 388 | 310 | 352 | 282 | 538 | GSM11-G2 |
| EG-CS 350S | 438 | 350 | 398 | 318 | 607 | 6ZTAA13-G3 |
| EG-CS 390S | 488 | 390 | 443 | 355 | 677 | 6ZTAA13-G2 |
| EG-CS 400S | 500 | 400 | 455 | 364 | 694 | QSZ13-G2 |
| EG-CS 450S | 563 | 450 | 511 | 409 | 781 | QSZ13-G3 |
| EG-CS 340S | 425 | 340 | 386 | 309 | 590 | QSZ13-G6 |
| EG-CS 390S-1 | 488 | 390 | 443 | 355 | 677 | QSZ13-G7 |
| EG-CS 420S | 525 | 420 | 477 | 382 | 729 | QSZ13-G5 |
| EG-CCS 275S | 344 | 275 | 313 | 250 | 477 | NTA855-G1 |
| EG-CCS 300S | 375 | 300 | 344 | 275 | 520 | NTA855-G1B |
| EG-CCS 350S | 438 | 350 | 394 | 315 | 607 | NTA855-G3 |
| EG-CCS 400S | 500 | 400 | 438 | 350 | 694 | KTA19-G2 |
| EG-CCS 450S | 563 | 450 | 513 | 410 | 781 | KTA19-G3 |
| EG-CCS 500S | 625 | 500 | 563 | 450 | 867 | KTA19-G3A |
| EG-CCS 500S-1 | 625 | 500 | 563 | 450 | 867 | KTA19-G4 |
| EG-CCS 550S | 688 | 550 | 588 | 470 | 954 | KTAA19-G5 |
| EG-CCS 570S | 710 | 570 | 625 | 500 | 985 | QSK19-G4 |
| EG-CCS 600S | 750 | 600 | 690 | 550 | 1041 | QSK19-G5 |
| EG-CCS 600S-1 | 750 | 600 | NA | NA | 1041 | KTAA19-G6A standby |
| EG-CCS 680S | 850 | 680 | 775 | 620 | 1180 | KT38-G |
| EG-CCS 800S | 1000 | 800 | 906 | 725 | 1388 | KTA38-G2 |
| EG-CCS 900S | 1125 | 900 | 1000 | 800 | 1561 | KTA38-G2 A |
| EG-CCS 1000S | 1250 | 1000 | 1125 | 900 | 1735 | KTA38-G4 |
| EG-CCS 1100S | 1375 | 1100 | NA | NA | 1908 | KTA38-G9 standby |
| EG-CCS 1150S | 1440 | 1150 | 1200 | 960 | 1999 | QSKTA38-G5 |
| EG-CCS 1260S | 1575 | 1260 | 1375 | 1100 | 2186 | KTA50-G3 |
| EG-CCS 1500S | 1875 | 1500 | 1575 | 1260 | 2602 | KTA50-G9 |
